CERTIFICATIONS

Products were CE certified by the certified European associations such as Bureau Veritas, TSE, TSEK, GOST and GOSGORTECHNADZOR, UKPRO, TÜVSÜV, DVGW, BUREAU VERITAS, ADVANTICA, SZUTEST and TECHNIGAS. ISO 9001 : 2008 Quality Management System Certificate was granted by Bureau Veritas.

ADVANCED TECHNOLOGY, SMALL SIZE, HIGH EFFICIENCY

• Combination of high technology and superior workmanship.
• Long life, compact design, high capacity to size ratio.
• Suitable for use of Natural Gas, LPG, Light Oil and Heavy Oil as fuel.
• Special design to minimize the effects of sediments and scaling on waterside.
• Well-distributed expansion pattern due to balanced heat absorption within the boiler.
• Also transportable in modular configuration for site assembly, for boiler rooms with narrow passages.

SYSTEM / GRID WATER CIRCUIT

System separates the combustion air delivered by the ventilator as primary and secondary air which is injected to the combustion chamber via air nozzles. The cooling water circulating in the grid system extends the life of the grid. The heat absorbed during the circulation by the cooling water contributes as useful energy since it will be connected to the main heating circuit of the boiler system.

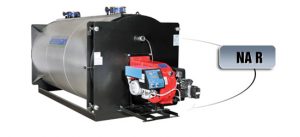

LIQUID AND GAS FUEL FIRED, WITH TUBE BUNDLE THREE PASS HOT WATER BOILER

• Operation pressure 3-8 bar
• Easiness of placing and installation into boiler room by means of compact desing
• 3 pass – Tube bundle between passes except combustion chamber
• Long boiler life time with application of continious pass for all 3 passes
• Minumum Thermal Stress and Maximum Efficiency by means of guiding injector plates providing boiler return flow to hottest regions of boiler homogenously
• Low NOx, Perfect combustion, by means of thermal design ensuring combustion to be completed in the comustion chamber
• 92% boiler efficiency
• Condensing boiler efficiency with stainless steel economizer application
• Minimized bioler stand.by losses by reducing heat radiation losses with insulation of boiler shell by means of aluminium folio covered glass wool application in 80 mm thickness.
• Certified according to 92/42/EEC New Hot Water Boilers and 90/396/EEC Gas Appliances Directives
• Certified according to Turkish Standarts rules (TSE)

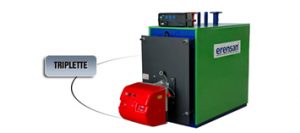

LIQUID AND GAS FUEL THREE PASS HOT WATER BOILER 80-350 KW

• Easy Access and installation opportunity because of narrowness due to oval boiler body.
• Imbricated 3-pass design provides optimum thermal balance. effective heat transfer and low operating costs.
• Lower heat load by means of large water volume.
• Optimum furnace geometry.
• Longer boiler life due to continuous draft at all of three passes and balanced cooling of flue gas.
• Minimum pollution to environment by means of low flue gas emissions.
• Maximum heating energy utilized due to flue gas tabulators placed in 3rd pass flue gas tubes.
• Radiation heat losses and stand by losses are minimized by means of aluminum folio cladded 80 mm glass wool insulation.
• Insulation panels are delivered ready to install in a separate package.

LIQUID AND GAS FUEL THREE PASS HOT WATER BOILER 465 – 1250 KW

• Narrowness due to connected lower and top shell provides easy inlet to boiler room and easy installation.
• Imbricated 3-pass design provides optimum thermal balance, effective heat transfer and low operating costs.
• Lower heat load by means of large water volume.
• Optimum furnace geometry.
• Longer boiler life due to continuous draft at all of three passes and balanced cooling of flue gas.
• Minimum pollution to environment by means of low flue gas emissions.
• Maximum heating energy utilized due to flue gas tabulators placed in 3rd pass flue gas tubes.
• Radiation heat losses and stand by losses are minimized by means of aluminum folio cladded 80 mm glass wool insulation.
• Insulation panels are delivered ready to install in a separate package.

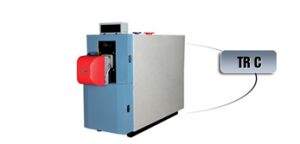

GAS FIRED, OVAL SHAPED (ELLIPTIC) SHELL, 3-PASS, CONDENSING BOILER TR C 175-350

• Low fuel consumption, more compact, environment friendly
• Narrower than others, by means of oval shaped shell, provides ease erection in the boiler room.
• Optimum thermal balance and effective heat usage, imbricated 3-pass design in order to cut operation costs.
• Low heat load by means of large water volume.
• Optimum combustion chamber geometry.
• Long lifetime by means of continuity and balanced cooling of combustion gasses.
• Lower pollution by means of low emissions.
• Maximum benefit by means of turbulators placed in 3rd pass.
• Minimum heat loss and less radiation loss by means of 80 mm. aluminum folio covered glass wool insulation.
• Insulation cover steel sheets are delivered in a separate crate as ready to installation.

GAS FIRED, IMBRICATE 2 CYLINDRICAL SHELL, 3-PASS CONDENSING BOILER TR C 465-1250

• Low fuel consumption, more compact, environment friendly
• Provides easy pass through boiler room door and easy erection in the boiler room, by means of imbricate bottom and top shells.
• Optimum thermal balance and effective heat usage, imbricate 3-pass design in order to cut operation costs.
• Low heat load by means of large water volume.
• Optimum combustion chamber geometry.
• Long lifetime by means of continuity and balanced cooling of combustion gasses.
• Lower pollution by means of low emissions.
• Maximum benefit by means of turbulators placed in 3rd pass.
• Minimum heat loss and less radiation loss by means of 80 mm. aluminum folio covered glass wool insulation.
• Insulation cover steel sheets are delivered in a separate crate as ready to installation.
